Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
Rail Motor Car Introduction
Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
Rail motor ar is powered by the mobile cable chain. The mobile cable conducts AC 380V directly into the electrical control system of the transport car, then the motor drives the reducer to let the wheel of the car start, stop, go forward and backward and so on. The rail motor car is powered by dragging cable which is laid on the ground. The cable chain is designed one side of railway transfer cars according to client demand.
Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
Advantage of Rail Motor Car
Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
1. Contiunous work;
2. Can add a lifting function;
3. Can move on level line and vertical movement;
4. Can be add hydraulic lifting device;
5. Can be add dumping device;
6. High efficiency, low energy consumption.
Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
Rail Motor Car Safey Device Details
Parameter of Rail Motor Car
Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant Heavy Duty Rail Motor Car For Workshop Material Handling In Plastic Mold Plant
| Model | KPT-2T |
| Rated Load(t) | 2 |
| Table size(mm) | 2000*1500*450 |
| Wheel Base(mm) | 1200 |
| Rail Gauge(mm) | 1200 |
| Wheel Diameter(mm) | Ф270 |
| Wheel Quantity(Pcs) | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 25 |
| Motor Power(Kw) | 0.8 |
| Max Wheel Load(KN) | 14.4 |
| Reference Weight(t) | 2.3 |
| Recommended Rail Model | P15 |
Rail Motor Car Application
Rail motor car is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

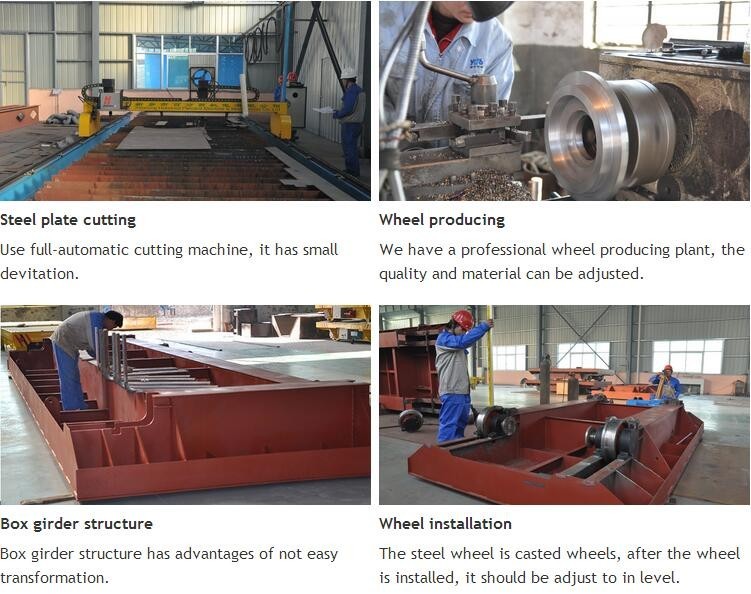

Processing Flow
Our Delivery
tags:battery powered vehicle for coils,material handling vehicle for coils
|
|
